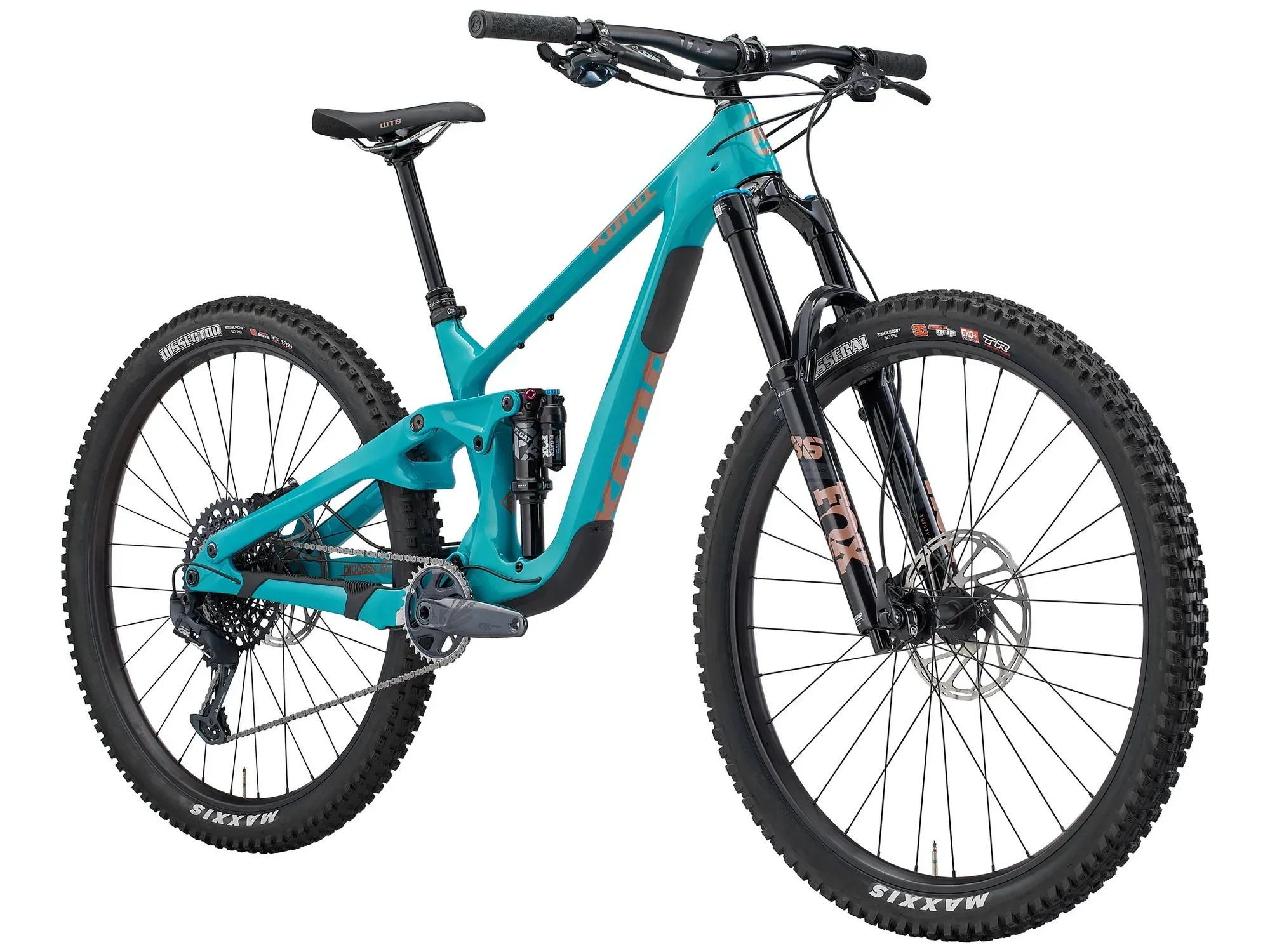

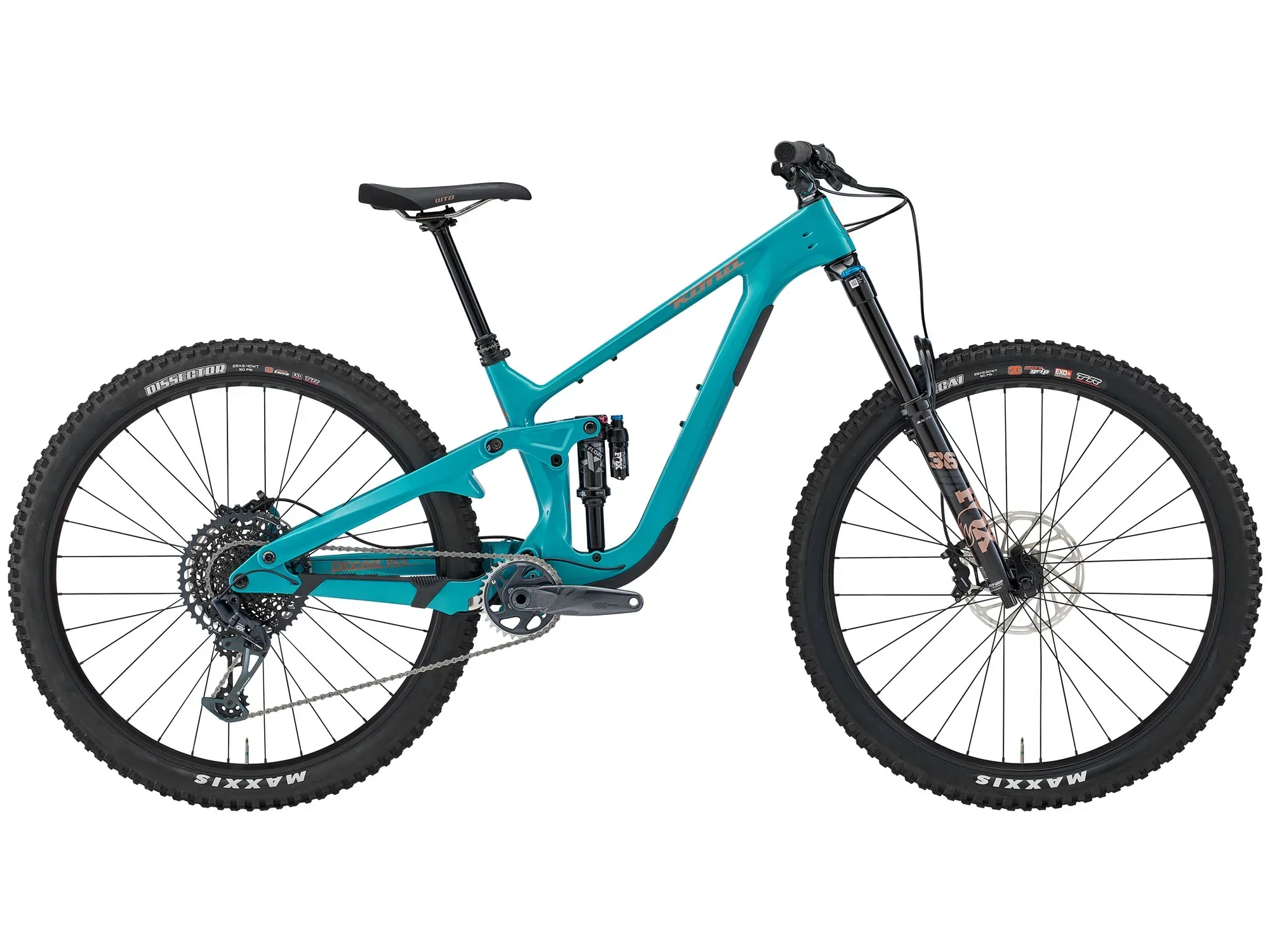

Add some fiber to your diet and get after it. With the same carbon fiber frame as the 153 CR DL, a super dependable SRAM GX cable operated drivetrain, hammer reliable DT Swiss hubs and proven Fox Performance Elite suspension components, the Process 153 CR is the all-mountain, burly-trail equivalent of a tailored suit matched with running shoes. It’s here to do business, and is ready for anything the world may throw in its path. All the tools you need to go as big as you dream, and just enough extra style to dare you to go bigger. You have achieved peak LFG. So, what are you waiting for? LFG!

B36153C01

B36153C03

B36153C05

B36153C06

SPECIFICATIONS

FRAME MATERIAL	Kona DH Carbon 153mm Travel
SIZES	S, M, L, XL
REAR SHOCK	Fox Float X Performance Elite Trunnion
FORK	Fox 36 Performance 160mm Tapered 110mm Spacing
CRANKARMS	SRAM GX Eagle DUB
CHAINRINGS	32t X-Sync Eagle
B/B	SRAM DUB PF92
PEDALS	n/a
CHAIN	SRAM NX-Eagle
CASSETTE	SRAM GX-Eagle 10-52t 12spd
CHAINGUIDE	n/a
F/D	n/a
R/D	SRAM GX-Eagle
SHIFTERS	SRAM GX-Eagle
BRAKE CALIPERS	SRAM G2 R
FRONT BRAKE ROTOR	SRAM Centerline 200mm
REAR BRAKE ROTOR	SRAM Centerline 200mm
BRAKE LEVERS	SRAM G2 R
HEADSET	FSA Orbit 1.5 E ZS
HANDLEBAR	Kona XC/BC 35
STEM	Kona XC/BC 35
SEATPOST	TranzX Dropper +RAD Internal 31.6mm
SEAT CLAMP	Kona Clamp
GRIPS	Kona Key Grip
SADDLE	WTB Volt
FRONT HUB	DT Swiss 370 110x15mm
REAR HUB	DT Swiss 370 148x12mm
SPOKES	Stainless Black 14g
RIMS	WTB KOM Trail i30 TCS
FRONT TIRE	Maxxis Assegai EXO+ TR 3C 29x2.5" WT
REAR TIRE	Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)
PAINT COLOR	Gloss Viridian w/ Metallic Bronze Decals
EXTRAS	n/a

GEOMETRY

	SIZE	S	M	L	XL
1	ST LENGTH	380	380	420	450
2	TT LENGTH	574	599	628	667
3	REACH	430	455	480	515
4	STACK	615	615	625	635
5	STANDOVER	690	700	710	720
6	HT ANGLE	64.5	64.5	64.5	64.5
7	HT LENGTH	94	94	105	116
8	ST ANGLE	76.9	76.9	76.7	76.6
9	CS LENGTH	435	435	435	435
10	BB DROP	20	30	30	30
11	BB HEIGHT	345	345	345	345
12	WHEELBASE	1190	1215	1244	1284
13	FRONT CENTER	756	781	811	851
14	FORK LENGTH	571	571	571	571
15	FORK OFFSET	44	44	44	44

Full Suspension

Process 153 CR G3 - Full Suspension
